Validating Structural Integrity: Ansys Static Analysis for Fuselage Frame

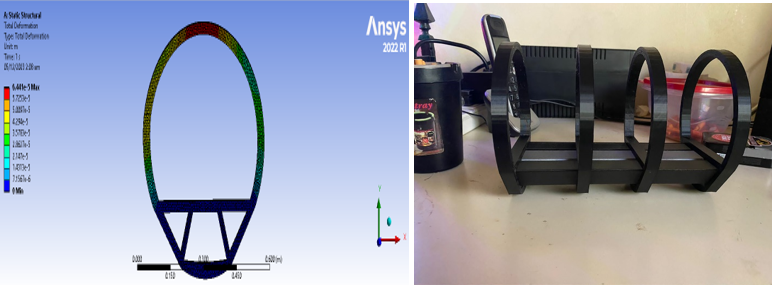

In collaboration with our esteemed Mexican client, we conducted a static structural analysis using Ansys to verify hand calculations and other calculations. Focused specifically on the fuselage frame, our objective was to ensure the structural integrity and safety of the aircraft component. By employing Ansys, we meticulously scrutinized the frame's response to various loading conditions, comparing the results with hand calculations to validate accuracy. This project underscores our commitment to delivering robust engineering solutions tailored to the stringent standards of aerospace industry clients.
